Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

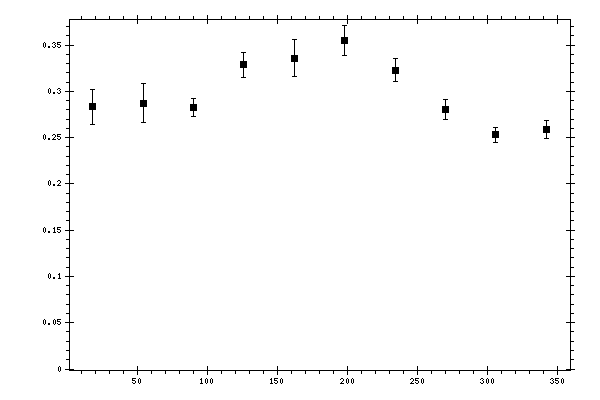

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.283187 | 0.0192424 | 0.02926558 |
| 54 | 0.287354 | 0.0209761 | 0.02689076 |
| 90 | 0.282398 | 0.00974012 | 0.02654299 |
| 126 | 0.328623 | 0.0131505 | 0.02947647 |
| 162 | 0.335834 | 0.0201467 | 0.03111994 |
| 198 | 0.354747 | 0.0161406 | 0.03816837 |
| 234 | 0.322768 | 0.0124985 | 0.03354267 |
| 270 | 0.280548 | 0.010502 | 0.02685286 |
| 306 | 0.252997 | 0.00833655 | 0.02506492 |
| 342 | 0.25851 | 0.00962621 | 0.02638707 |
