Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

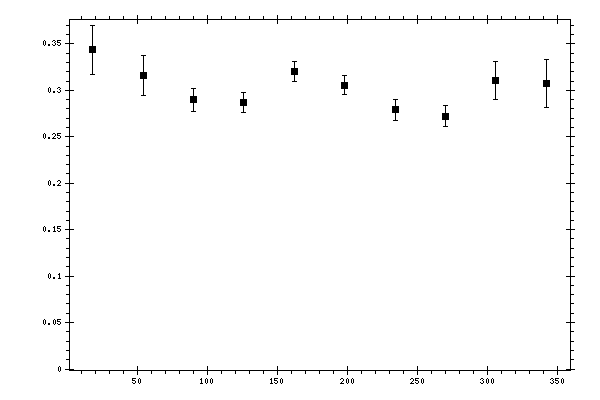

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.343513 | 0.026742 | 0.05919316 |
| 54 | 0.316021 | 0.021852 | 0.02965319 |
| 90 | 0.289848 | 0.0123164 | 0.02132431 |
| 126 | 0.28698 | 0.0105357 | 0.02142588 |
| 162 | 0.320164 | 0.0103786 | 0.02421682 |
| 198 | 0.305392 | 0.0101064 | 0.02325835 |
| 234 | 0.278886 | 0.0109073 | 0.02177015 |
| 270 | 0.272107 | 0.0112297 | 0.02246768 |
| 306 | 0.310347 | 0.0207359 | 0.02654221 |
| 342 | 0.307413 | 0.0258995 | 0.05013327 |
