Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

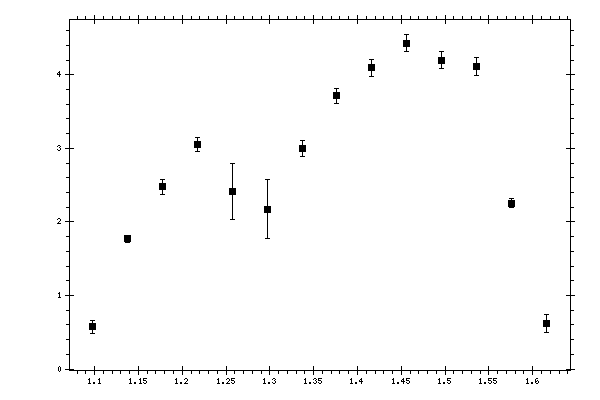

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09776 | 0.571785 | 0.0864468 | 0.04405193 |
| 1.13758 | 1.77178 | 0.049109 | 0.13322054 |
| 1.17741 | 2.47673 | 0.104483 | 0.17631559 |
| 1.21724 | 3.04785 | 0.0941869 | 0.21624261 |
| 1.25707 | 2.41128 | 0.382523 | 0.23397332 |
| 1.29689 | 2.17409 | 0.40285 | 0.21163946 |
| 1.33672 | 2.99242 | 0.109411 | 0.25403052 |
| 1.37655 | 3.71262 | 0.0982274 | 0.30504796 |
| 1.41638 | 4.09297 | 0.11521 | 0.34774867 |
| 1.45621 | 4.43137 | 0.110724 | 0.3690152 |
| 1.49603 | 4.19843 | 0.115923 | 0.45970827 |
| 1.53586 | 4.11258 | 0.117126 | 0.455167 |
| 1.57569 | 2.25676 | 0.064193 | 0.31994133 |
| 1.61552 | 0.616873 | 0.122781 | 0.25942451 |
