Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|

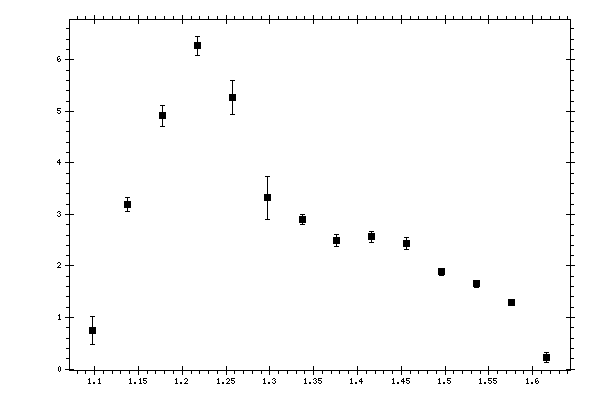

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09776 | 0.750155 | 0.26696 | 0.24991099 |
| 1.13758 | 3.19408 | 0.129375 | 0.38166889 |
| 1.17741 | 4.91033 | 0.205768 | 0.50144604 |
| 1.21724 | 6.27377 | 0.182041 | 0.57784598 |
| 1.25707 | 5.26447 | 0.328529 | 0.53070149 |
| 1.29689 | 3.32362 | 0.413472 | 0.34986851 |
| 1.33672 | 2.90046 | 0.104731 | 0.30568856 |
| 1.37655 | 2.49927 | 0.112824 | 0.26379155 |
| 1.41638 | 2.56254 | 0.115074 | 0.20454045 |
| 1.45621 | 2.44162 | 0.117889 | 0.19493127 |
| 1.49603 | 1.88752 | 0.0676186 | 0.13466441 |
| 1.53586 | 1.65206 | 0.0722769 | 0.11800289 |
| 1.57569 | 1.28662 | 0.0415567 | 0.09931929 |
| 1.61552 | 0.223551 | 0.099696 | 0.01791607 |
