Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

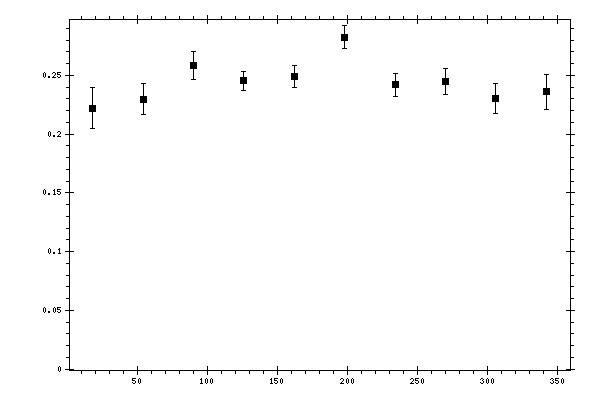

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.221941 | 0.0176196 | 0.03167051 |
| 54 | 0.229791 | 0.0128417 | 0.02607663 |
| 90 | 0.258081 | 0.0119955 | 0.0197562 |
| 126 | 0.245135 | 0.00846523 | 0.01803858 |
| 162 | 0.248865 | 0.0094425 | 0.01881593 |
| 198 | 0.282574 | 0.010057 | 0.02185442 |
| 234 | 0.241746 | 0.0096155 | 0.0186149 |
| 270 | 0.24472 | 0.0112646 | 0.01961891 |
| 306 | 0.230434 | 0.0126171 | 0.02483597 |
| 342 | 0.235864 | 0.0150712 | 0.04568746 |
