Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

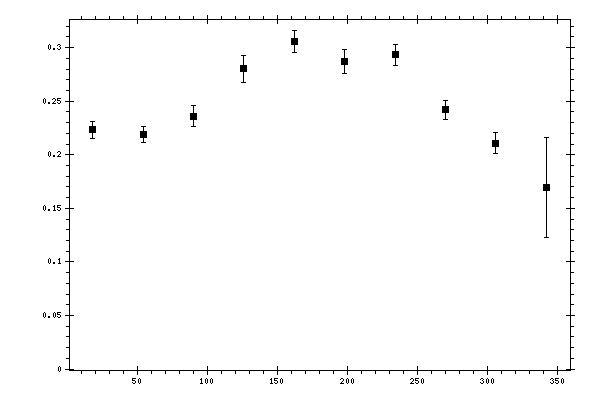

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.22319 | 0.00828281 | 0.02057501 |
| 54 | 0.21931 | 0.00749871 | 0.02049234 |
| 90 | 0.235978 | 0.00982318 | 0.02184142 |
| 126 | 0.280232 | 0.0126416 | 0.02419956 |
| 162 | 0.305766 | 0.0103972 | 0.03070985 |
| 198 | 0.287208 | 0.0109645 | 0.02580701 |
| 234 | 0.293335 | 0.00986554 | 0.02459943 |
| 270 | 0.241831 | 0.00863671 | 0.022144 |
| 306 | 0.21083 | 0.00982982 | 0.02001018 |
| 342 | 0.16972 | 0.0466116 | 0.02007326 |
