Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|

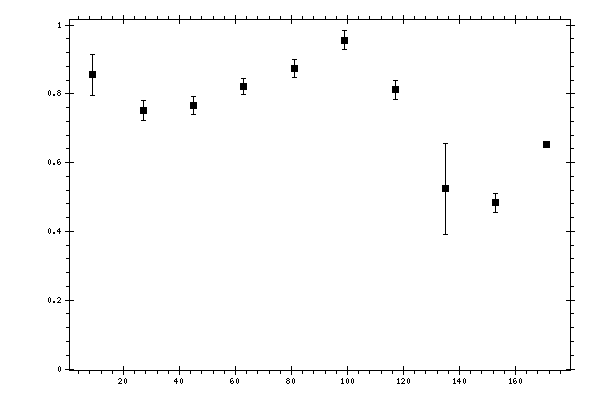

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.855103 | 0.0604823 | 0.07792055 |
| 27 | 0.751387 | 0.0298915 | 0.05768564 |
| 45 | 0.766073 | 0.0274769 | 0.05661984 |
| 63 | 0.822152 | 0.0231806 | 0.06240966 |
| 81 | 0.87344 | 0.0257014 | 0.06277485 |
| 99 | 0.956272 | 0.0287346 | 0.07013462 |
| 117 | 0.811803 | 0.0276572 | 0.06880477 |
| 135 | 0.523928 | 0.132965 | 0.09855898 |
| 153 | 0.483091 | 0.0271676 | 0.19288063 |
| 171 | 0.652075 | 0.00184311 | 0.34450722 |
