Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|

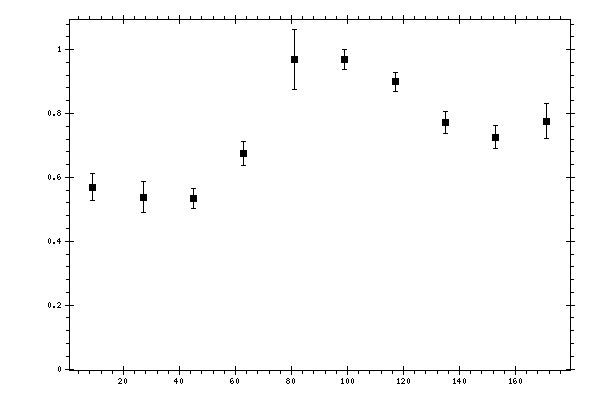

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.569716 | 0.0409197 | 0.09008816 |
| 27 | 0.538434 | 0.0476248 | 0.06887782 |
| 45 | 0.53331 | 0.0312092 | 0.09492876 |
| 63 | 0.67619 | 0.037604 | 0.06706237 |
| 81 | 0.970166 | 0.0938405 | 0.101695 |
| 99 | 0.969452 | 0.0322365 | 0.07411108 |
| 117 | 0.899243 | 0.0300282 | 0.07054433 |
| 135 | 0.77216 | 0.0344527 | 0.06340943 |
| 153 | 0.725908 | 0.0354699 | 0.0556863 |
| 171 | 0.775674 | 0.0554986 | 0.06185899 |
