Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

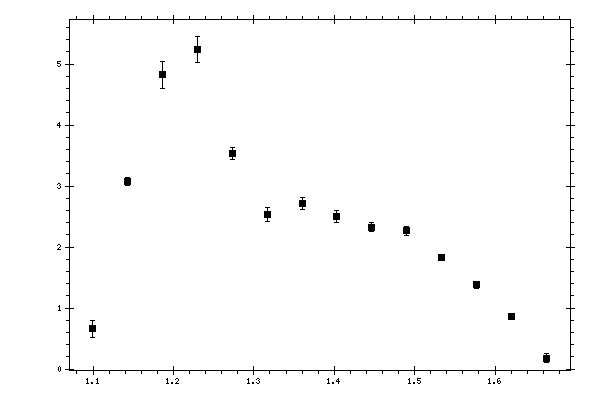

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09954 | 0.66292 | 0.139848 | 0.24996072 |
| 1.14294 | 3.06895 | 0.0649967 | 0.33756292 |
| 1.18634 | 4.82242 | 0.223441 | 0.52880534 |
| 1.22974 | 5.2413 | 0.214327 | 0.56279356 |
| 1.27314 | 3.53952 | 0.0984021 | 0.27066589 |
| 1.31654 | 2.53575 | 0.116258 | 0.20154298 |
| 1.35994 | 2.70838 | 0.0998707 | 0.22720431 |
| 1.40334 | 2.50146 | 0.103919 | 0.20994586 |
| 1.44673 | 2.32732 | 0.0705131 | 0.17046432 |
| 1.49013 | 2.26843 | 0.0714227 | 0.1661604 |
| 1.53353 | 1.82535 | 0.0487786 | 0.13127265 |
| 1.57693 | 1.37967 | 0.0561066 | 0.09931851 |
| 1.62033 | 0.855722 | 0.0323102 | 0.07040684 |
| 1.66373 | 0.176105 | 0.071223 | 0.01493487 |
