Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

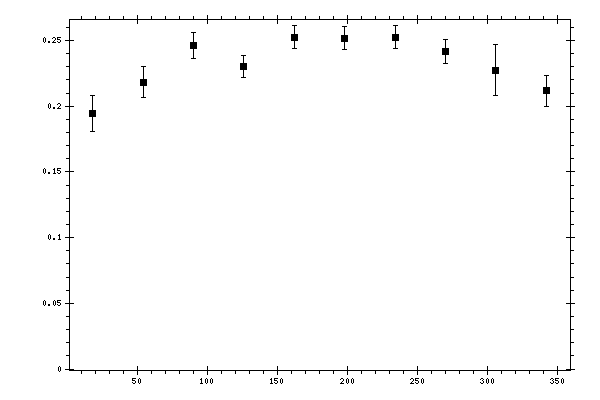

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.194288 | 0.013825 | 0.02790102 |
| 54 | 0.218175 | 0.0119127 | 0.02064219 |
| 90 | 0.245925 | 0.00976338 | 0.01867926 |
| 126 | 0.230395 | 0.00844066 | 0.01796134 |
| 162 | 0.252508 | 0.00899999 | 0.01937159 |
| 198 | 0.251783 | 0.00864632 | 0.01936327 |
| 234 | 0.252394 | 0.00872207 | 0.01893784 |
| 270 | 0.241918 | 0.00915374 | 0.0196674 |
| 306 | 0.227248 | 0.0193828 | 0.02407542 |
| 342 | 0.211551 | 0.0120118 | 0.03080512 |
