Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

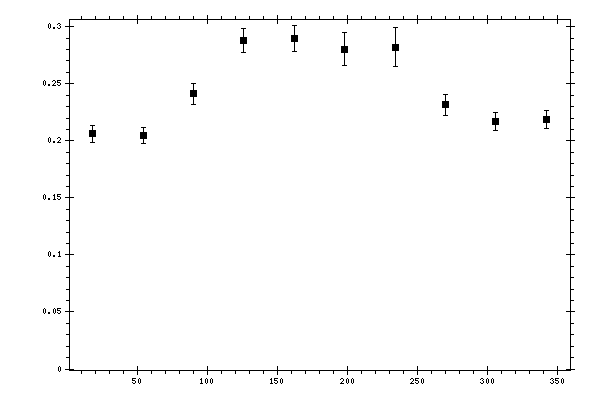

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.206151 | 0.0074352 | 0.01988142 |
| 54 | 0.204577 | 0.007074 | 0.01904144 |
| 90 | 0.241104 | 0.00918264 | 0.02047578 |
| 126 | 0.287769 | 0.0103456 | 0.02368506 |
| 162 | 0.289463 | 0.0113034 | 0.0234257 |
| 198 | 0.280459 | 0.014456 | 0.02366737 |
| 234 | 0.282209 | 0.017404 | 0.02572415 |
| 270 | 0.231436 | 0.00943777 | 0.02275639 |
| 306 | 0.216977 | 0.00786464 | 0.01940887 |
| 342 | 0.218521 | 0.00791443 | 0.02089116 |
