Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|

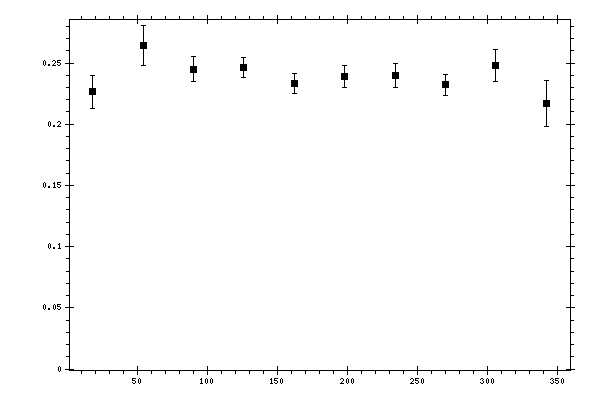

Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.226382 | 0.0137738 | 0.03216715 |
| 54 | 0.264664 | 0.0163553 | 0.02277533 |
| 90 | 0.245033 | 0.0104723 | 0.02213183 |
| 126 | 0.246516 | 0.00839405 | 0.01900215 |
| 162 | 0.233151 | 0.00823645 | 0.01929859 |
| 198 | 0.238912 | 0.00917656 | 0.0189026 |
| 234 | 0.239681 | 0.0100234 | 0.01811404 |
| 270 | 0.232123 | 0.0087878 | 0.01816793 |
| 306 | 0.247904 | 0.0132011 | 0.02248966 |
| 342 | 0.217133 | 0.0189004 | 0.03906447 |
