Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

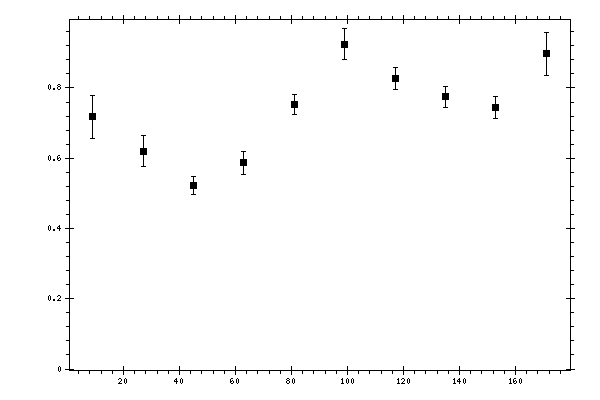

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.717937 | 0.0611531 | 0.101191 |
| 27 | 0.62019 | 0.0441517 | 0.08519135 |
| 45 | 0.521668 | 0.0259068 | 0.0589549 |
| 63 | 0.586814 | 0.0335219 | 0.05648269 |
| 81 | 0.752848 | 0.0286085 | 0.06951137 |
| 99 | 0.924772 | 0.0450458 | 0.07696172 |
| 117 | 0.826499 | 0.0313164 | 0.07376012 |
| 135 | 0.774766 | 0.0291198 | 0.06584654 |
| 153 | 0.745314 | 0.0315424 | 0.05955463 |
| 171 | 0.897477 | 0.0612959 | 0.0954277 |
