Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.85 — 1.9 GeV |
|

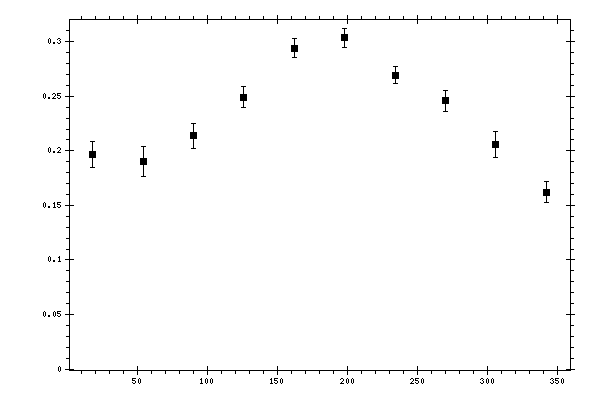

Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.196764 | 0.0120701 | 0.02281735 |
| 54 | 0.190296 | 0.0137835 | 0.02052186 |
| 90 | 0.213936 | 0.0114487 | 0.01800351 |
| 126 | 0.249311 | 0.00943975 | 0.01861545 |
| 162 | 0.294174 | 0.00888139 | 0.02250172 |
| 198 | 0.303468 | 0.00848577 | 0.02232402 |
| 234 | 0.269272 | 0.00784451 | 0.02186917 |
| 270 | 0.245843 | 0.00981175 | 0.01887276 |
| 306 | 0.205989 | 0.0119315 | 0.0216773 |
| 342 | 0.162192 | 0.00953942 | 0.02275237 |
