Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.85 — 1.9 GeV |
|

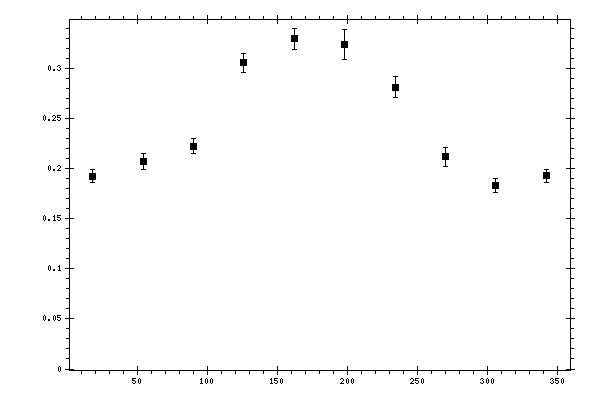

Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.192732 | 0.00633172 | 0.01793924 |
| 54 | 0.207386 | 0.00788742 | 0.01783946 |
| 90 | 0.222762 | 0.00754598 | 0.0207652 |
| 126 | 0.305901 | 0.0096621 | 0.02371163 |
| 162 | 0.329886 | 0.0106202 | 0.02514895 |
| 198 | 0.324248 | 0.0151704 | 0.02650194 |
| 234 | 0.281655 | 0.0105335 | 0.02307715 |
| 270 | 0.212179 | 0.009522 | 0.01754246 |
| 306 | 0.18296 | 0.00708296 | 0.0157911 |
| 342 | 0.193258 | 0.00659052 | 0.01805485 |
