Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|

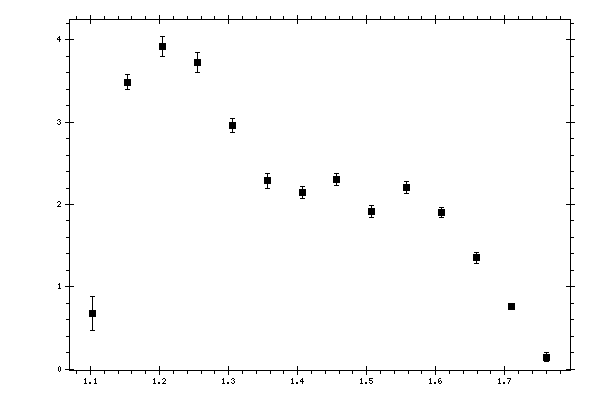

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10311 | 0.670424 | 0.205065 | 0.20538037 |
| 1.15365 | 3.48856 | 0.0898963 | 0.34332597 |
| 1.2042 | 3.92286 | 0.121696 | 0.33242879 |
| 1.25474 | 3.72742 | 0.124845 | 0.31989014 |
| 1.30528 | 2.96275 | 0.082207 | 0.21918966 |
| 1.35582 | 2.28535 | 0.093601 | 0.17079415 |
| 1.40636 | 2.14271 | 0.0736528 | 0.15819338 |
| 1.45691 | 2.29962 | 0.0710957 | 0.16974124 |
| 1.50745 | 1.91499 | 0.0731168 | 0.1453966 |
| 1.55799 | 2.20505 | 0.0681383 | 0.16740341 |
| 1.60853 | 1.90252 | 0.0560146 | 0.13851908 |
| 1.65907 | 1.35039 | 0.0664869 | 0.09837668 |
| 1.70962 | 0.76095 | 0.0241001 | 0.06278026 |
| 1.76016 | 0.145128 | 0.0551851 | 0.01244525 |
