Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|

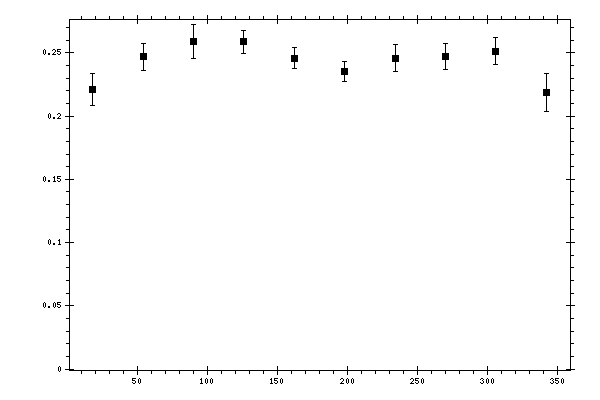

Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.221381 | 0.0126835 | 0.02356557 |
| 54 | 0.247051 | 0.0106022 | 0.01912598 |
| 90 | 0.258889 | 0.0136822 | 0.02257431 |
| 126 | 0.258603 | 0.00891886 | 0.0199891 |
| 162 | 0.245821 | 0.00849571 | 0.0185983 |
| 198 | 0.235186 | 0.00810654 | 0.0183725 |
| 234 | 0.24579 | 0.0107604 | 0.01761024 |
| 270 | 0.247338 | 0.0104682 | 0.01795283 |
| 306 | 0.251395 | 0.0106923 | 0.02065293 |
| 342 | 0.21873 | 0.0147138 | 0.02432657 |
