Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

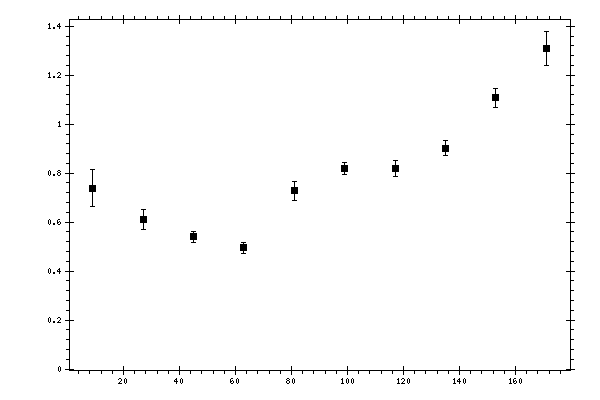

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.738906 | 0.0753203 | 0.1086988 |
| 27 | 0.61036 | 0.0407576 | 0.05906261 |
| 45 | 0.54096 | 0.0227564 | 0.04834744 |
| 63 | 0.495491 | 0.0228627 | 0.04341113 |
| 81 | 0.728331 | 0.0394135 | 0.0629956 |
| 99 | 0.819358 | 0.0242793 | 0.06096954 |
| 117 | 0.819623 | 0.0318662 | 0.06389509 |
| 135 | 0.902364 | 0.0307332 | 0.07084066 |
| 153 | 1.1088 | 0.0386038 | 0.08099676 |
| 171 | 1.31013 | 0.0703745 | 0.11010752 |
