Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.95 — 2 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

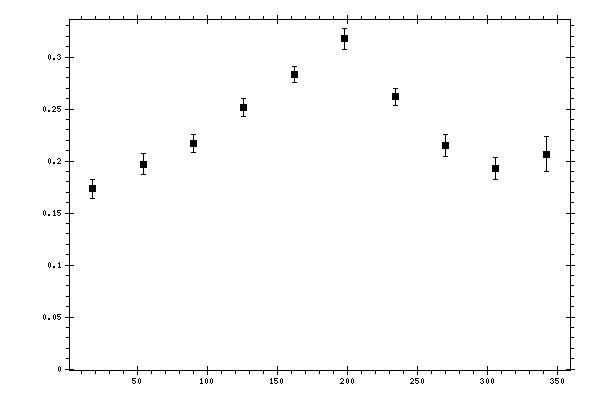

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.173494 | 0.00914369 | 0.01966274 |
| 54 | 0.196699 | 0.0101028 | 0.01759425 |
| 90 | 0.216831 | 0.00825461 | 0.01735308 |
| 126 | 0.251074 | 0.00866441 | 0.01981053 |
| 162 | 0.283107 | 0.0077959 | 0.02030211 |
| 198 | 0.317589 | 0.00989234 | 0.02339305 |
| 234 | 0.261626 | 0.00824435 | 0.02040848 |
| 270 | 0.215146 | 0.0103178 | 0.01692143 |
| 306 | 0.192876 | 0.0108408 | 0.01789476 |
| 342 | 0.206733 | 0.0170597 | 0.02536713 |
