Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.95 — 2 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

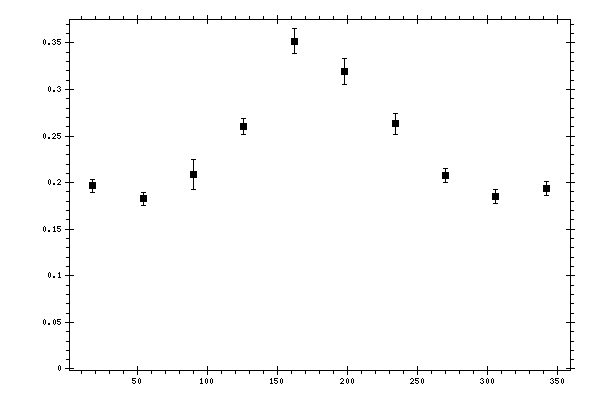

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.196542 | 0.00692859 | 0.01962109 |
| 54 | 0.182523 | 0.00675119 | 0.01545047 |
| 90 | 0.208714 | 0.015863 | 0.01706238 |
| 126 | 0.260039 | 0.00877759 | 0.01995713 |
| 162 | 0.351612 | 0.0135111 | 0.04066294 |
| 198 | 0.319477 | 0.0141854 | 0.02435574 |
| 234 | 0.263155 | 0.0115622 | 0.03352364 |
| 270 | 0.207584 | 0.00770747 | 0.01629763 |
| 306 | 0.185056 | 0.0072335 | 0.01566285 |
| 342 | 0.1939 | 0.00747661 | 0.01848701 |
