Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.95 — 2 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

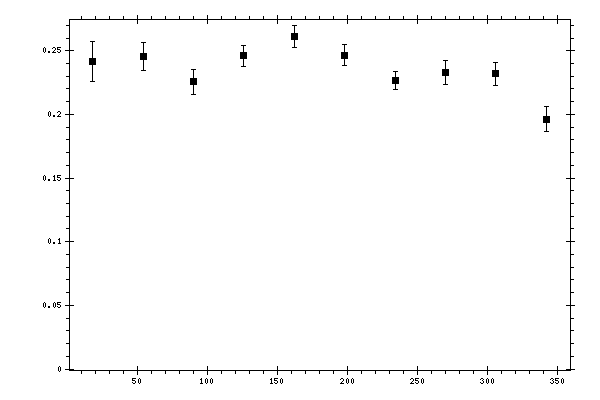

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.241395 | 0.0157679 | 0.02296129 |
| 54 | 0.245533 | 0.0110195 | 0.02039595 |
| 90 | 0.225751 | 0.00983021 | 0.01762402 |
| 126 | 0.246243 | 0.00824693 | 0.01823489 |
| 162 | 0.261445 | 0.00858476 | 0.02006335 |
| 198 | 0.246646 | 0.00849348 | 0.01847737 |
| 234 | 0.226784 | 0.0070607 | 0.01671436 |
| 270 | 0.232984 | 0.00964648 | 0.01866739 |
| 306 | 0.231819 | 0.00879681 | 0.02789851 |
| 342 | 0.196343 | 0.00958743 | 0.02081223 |
