Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|

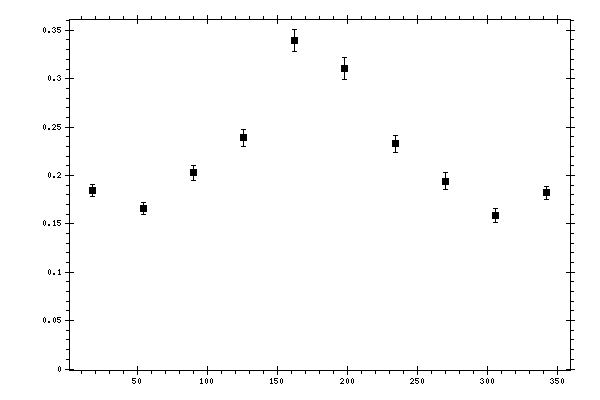

Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.184607 | 0.00609961 | 0.01813881 |
| 54 | 0.165969 | 0.00640164 | 0.01587837 |
| 90 | 0.202742 | 0.00754448 | 0.01568449 |
| 126 | 0.238744 | 0.00914576 | 0.01759332 |
| 162 | 0.339176 | 0.0115125 | 0.02601465 |
| 198 | 0.310247 | 0.0111314 | 0.02319462 |
| 234 | 0.232753 | 0.00859029 | 0.01816324 |
| 270 | 0.1941 | 0.00904499 | 0.01537543 |
| 306 | 0.158691 | 0.00690646 | 0.01401675 |
| 342 | 0.182146 | 0.0068579 | 0.01724843 |
