Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

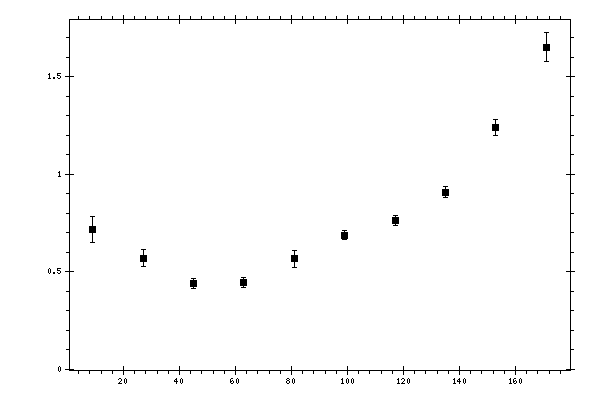

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.716539 | 0.0672906 | 0.10857245 |
| 27 | 0.569118 | 0.0427169 | 0.0632169 |
| 45 | 0.436717 | 0.0253171 | 0.04107145 |
| 63 | 0.444139 | 0.0236729 | 0.03903329 |
| 81 | 0.564735 | 0.0428462 | 0.04300829 |
| 99 | 0.686063 | 0.0229212 | 0.05382237 |
| 117 | 0.762359 | 0.0246966 | 0.05651068 |
| 135 | 0.90841 | 0.0300282 | 0.06937271 |
| 153 | 1.24161 | 0.0409816 | 0.09404781 |
| 171 | 1.65065 | 0.0749165 | 0.12922654 |
