Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

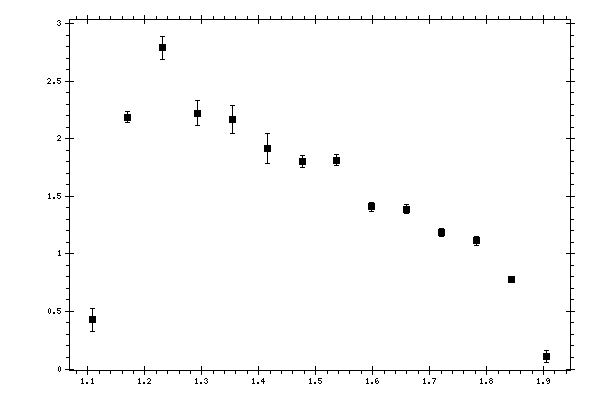

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10847 | 0.427515 | 0.101483 | 0.19757569 |
| 1.16973 | 2.1897 | 0.044841 | 0.26692937 |
| 1.23098 | 2.79227 | 0.0995372 | 0.24170072 |
| 1.29224 | 2.22468 | 0.111514 | 0.19832535 |
| 1.3535 | 2.16978 | 0.120514 | 0.15918843 |
| 1.41475 | 1.91557 | 0.128262 | 0.14072305 |
| 1.47601 | 1.80327 | 0.0509298 | 0.13634923 |
| 1.53726 | 1.81607 | 0.05075 | 0.13731257 |
| 1.59852 | 1.41122 | 0.0397435 | 0.1091753 |
| 1.65978 | 1.38801 | 0.0400746 | 0.10738042 |
| 1.72103 | 1.18786 | 0.0349449 | 0.0880741 |
| 1.78229 | 1.11296 | 0.0361017 | 0.08252103 |
| 1.84355 | 0.776437 | 0.0205529 | 0.06155769 |
| 1.9048 | 0.10931 | 0.0547769 | 0.00888488 |
