Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

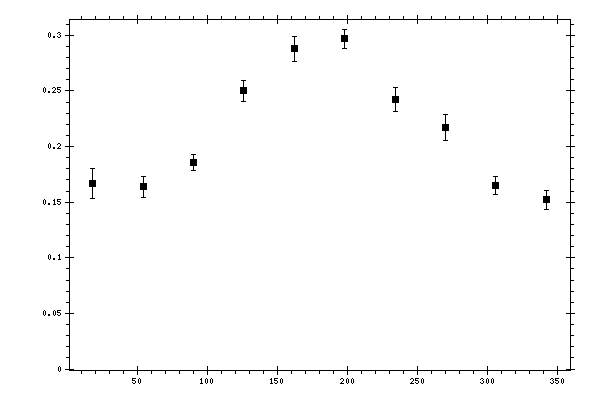

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.16714 | 0.0135351 | 0.0231792 |
| 54 | 0.163844 | 0.00968059 | 0.01524056 |
| 90 | 0.185719 | 0.00727219 | 0.01487149 |
| 126 | 0.250111 | 0.00924397 | 0.01888269 |
| 162 | 0.287771 | 0.0109347 | 0.02160026 |
| 198 | 0.297032 | 0.00870865 | 0.02178278 |
| 234 | 0.242763 | 0.010773 | 0.01847309 |
| 270 | 0.216972 | 0.0115574 | 0.02137289 |
| 306 | 0.165064 | 0.00823255 | 0.014508 |
| 342 | 0.152051 | 0.00837874 | 0.01618753 |
