Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|

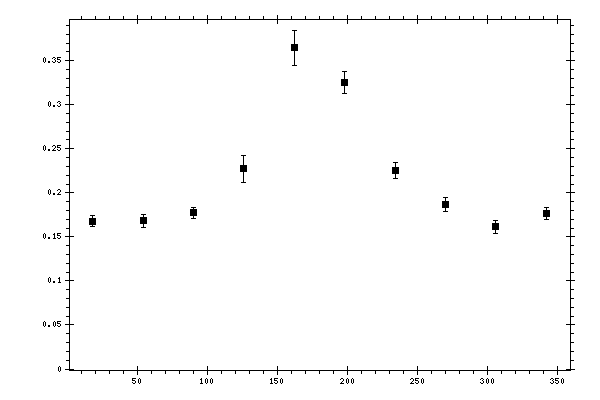

Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.167856 | 0.00653255 | 0.01575383 |
| 54 | 0.168133 | 0.00748859 | 0.01348174 |
| 90 | 0.177479 | 0.00629549 | 0.0135787 |
| 126 | 0.227116 | 0.0155771 | 0.01885114 |
| 162 | 0.364406 | 0.0202366 | 0.03023084 |
| 198 | 0.325394 | 0.0125827 | 0.02595746 |
| 234 | 0.225541 | 0.008842 | 0.01822588 |
| 270 | 0.186374 | 0.00813427 | 0.01451933 |
| 306 | 0.161483 | 0.00727646 | 0.01456484 |
| 342 | 0.17636 | 0.00665732 | 0.01649309 |
