Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.4 — 1.45 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

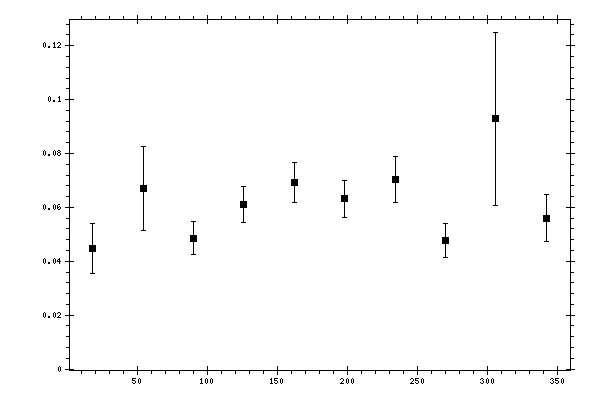

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0446726 | 0.00936654 | 0.0114638 |
| 54 | 0.06707 | 0.0154753 | 0.01374201 |
| 90 | 0.0486185 | 0.0062615 | 0.00403122 |
| 126 | 0.0610276 | 0.00654874 | 0.00560956 |
| 162 | 0.0693234 | 0.00737019 | 0.00572422 |
| 198 | 0.0632276 | 0.00686697 | 0.00678481 |
| 234 | 0.0704036 | 0.00864168 | 0.00640507 |
| 270 | 0.0475848 | 0.00627593 | 0.00575948 |
| 306 | 0.0929271 | 0.032131 | 0.02570455 |
| 342 | 0.0560335 | 0.00873738 | 0.01168186 |
