Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.4 — 1.45 GeV |
|

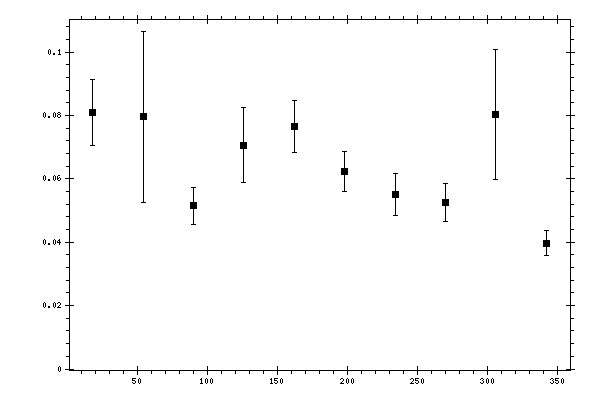

Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0809218 | 0.010407 | 0.01775635 |
| 54 | 0.0796396 | 0.0269838 | 0.02075309 |
| 90 | 0.0515074 | 0.00583105 | 0.00504924 |
| 126 | 0.070691 | 0.0118123 | 0.01076853 |
| 162 | 0.0764479 | 0.00817503 | 0.00918714 |
| 198 | 0.0622288 | 0.00634388 | 0.00626991 |
| 234 | 0.0551085 | 0.0066852 | 0.00497639 |
| 270 | 0.052539 | 0.0060483 | 0.00557241 |
| 306 | 0.0801873 | 0.0205162 | 0.01961961 |
| 342 | 0.0396972 | 0.0039712 | 0.01492548 |
