Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcbn/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.4 — 1.45 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcbn/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

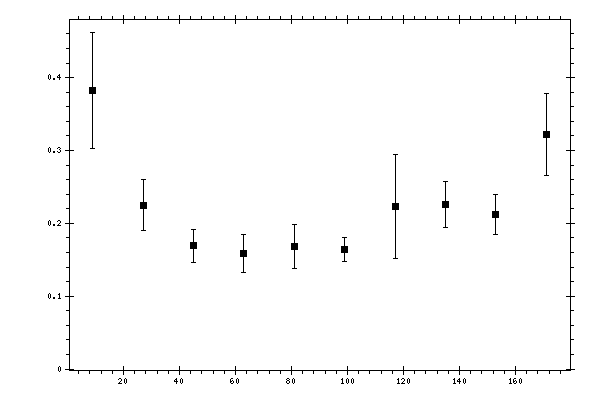

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.382478 | 0.0801608 | 0.05664162 |
| 27 | 0.22489 | 0.0347813 | 0.03212418 |
| 45 | 0.169016 | 0.0222202 | 0.02606235 |
| 63 | 0.158673 | 0.026261 | 0.02983386 |
| 81 | 0.1677 | 0.030047 | 0.03297655 |
| 99 | 0.164495 | 0.0167225 | 0.01735651 |
| 117 | 0.223485 | 0.0711049 | 0.05909421 |
| 135 | 0.225513 | 0.0315851 | 0.02747469 |
| 153 | 0.211799 | 0.0275193 | 0.0258886 |
| 171 | 0.321815 | 0.0557526 | 0.03639076 |
