Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.4 — 1.45 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

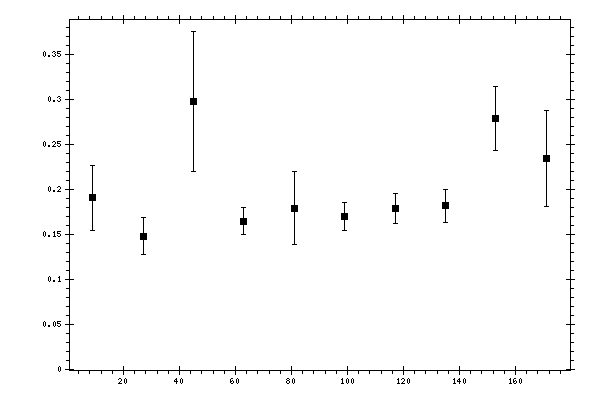

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.190547 | 0.036393 | 0.05713003 |
| 27 | 0.148013 | 0.020147 | 0.04811754 |
| 45 | 0.297874 | 0.0781717 | 0.08454681 |
| 63 | 0.16468 | 0.0147087 | 0.03197691 |
| 81 | 0.179102 | 0.0404953 | 0.03390719 |
| 99 | 0.170064 | 0.0155008 | 0.03068837 |
| 117 | 0.17856 | 0.016956 | 0.01400211 |
| 135 | 0.181736 | 0.0182416 | 0.01744154 |
| 153 | 0.278316 | 0.0356025 | 0.03299569 |
| 171 | 0.234127 | 0.0531755 | 0.05190934 |
