Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

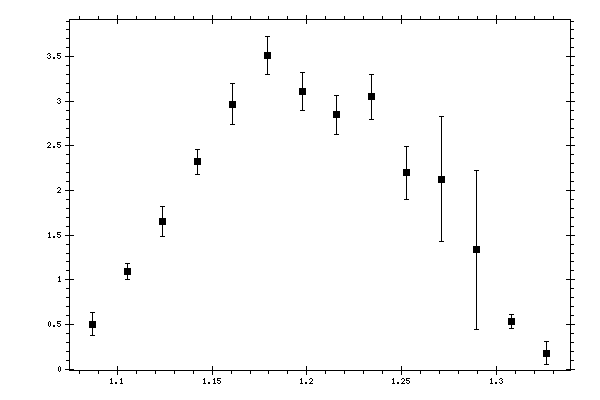

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.08704 | 0.502038 | 0.129848 | 0.053023 |
| 1.10544 | 1.09374 | 0.0879729 | 0.09672428 |
| 1.12384 | 1.65171 | 0.164396 | 0.174876 |
| 1.14224 | 2.32027 | 0.138703 | 0.21981297 |
| 1.16064 | 2.96985 | 0.230104 | 0.31497965 |
| 1.17904 | 3.51586 | 0.211483 | 0.35003326 |
| 1.19744 | 3.10564 | 0.213514 | 0.38754066 |
| 1.21584 | 2.84778 | 0.222971 | 0.36753336 |
| 1.23423 | 3.05105 | 0.253522 | 0.37724951 |
| 1.25263 | 2.19695 | 0.298765 | 0.31784455 |
| 1.27103 | 2.12909 | 0.705066 | 0.81185201 |
| 1.28943 | 1.33628 | 0.889975 | 0.52938435 |
| 1.30783 | 0.533071 | 0.0741105 | 0.20482741 |
| 1.32623 | 0.17551 | 0.129158 | 0.11340366 |
