Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

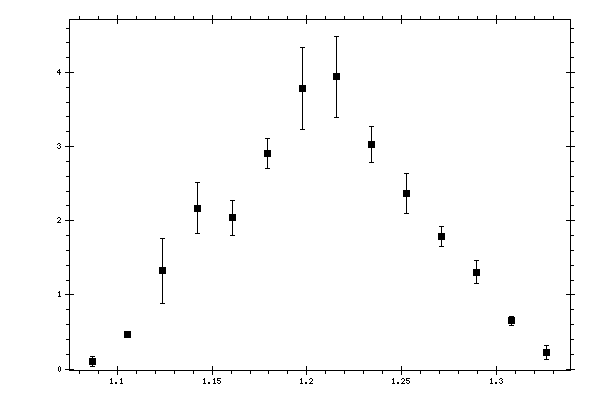

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.08704 | 0.10382 | 0.071346 | 0.08910506 |
| 1.10544 | 0.471163 | 0.0334907 | 0.23819079 |
| 1.12384 | 1.32353 | 0.442963 | 0.46933058 |
| 1.14224 | 2.16929 | 0.346001 | 0.75204685 |
| 1.16064 | 2.0411 | 0.237629 | 0.23974091 |
| 1.17904 | 2.9085 | 0.199065 | 0.31338992 |
| 1.19744 | 3.78244 | 0.555294 | 0.45551398 |
| 1.21584 | 3.94204 | 0.543937 | 0.47329939 |
| 1.23423 | 3.02931 | 0.236686 | 0.27026825 |
| 1.25263 | 2.36342 | 0.267962 | 0.22157267 |
| 1.27103 | 1.78444 | 0.135087 | 0.1486523 |
| 1.28943 | 1.30632 | 0.157885 | 0.11596206 |
| 1.30783 | 0.649105 | 0.0577545 | 0.07279018 |
| 1.32623 | 0.221896 | 0.0987799 | 0.03296038 |
