Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

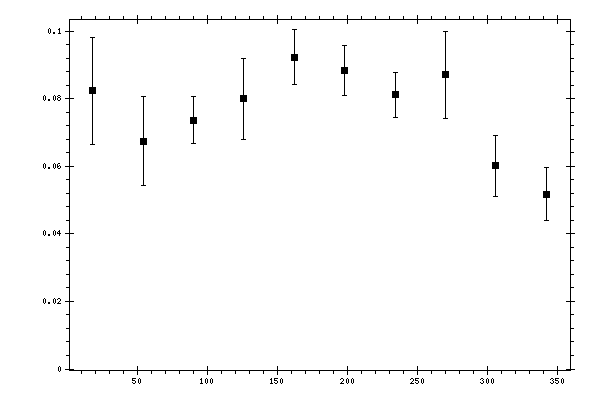

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0824405 | 0.0158936 | 0.01299542 |
| 54 | 0.0675219 | 0.0132238 | 0.01341074 |
| 90 | 0.07377 | 0.00683746 | 0.00601011 |
| 126 | 0.080102 | 0.0119724 | 0.01039123 |
| 162 | 0.0923647 | 0.00820476 | 0.00734313 |
| 198 | 0.0884075 | 0.0075023 | 0.00867269 |
| 234 | 0.0812035 | 0.00665621 | 0.00943116 |
| 270 | 0.0871889 | 0.0128442 | 0.00811985 |
| 306 | 0.0601851 | 0.00904698 | 0.00939808 |
| 342 | 0.0517481 | 0.00787452 | 0.01748416 |
