Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

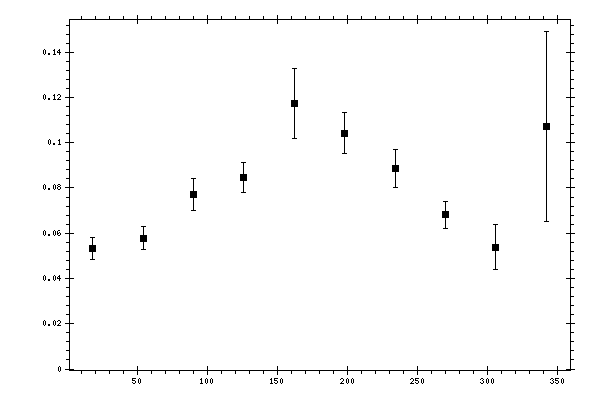

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0533723 | 0.00488888 | 0.00760773 |
| 54 | 0.0578218 | 0.00512674 | 0.00765265 |
| 90 | 0.0770745 | 0.00713734 | 0.00955605 |
| 126 | 0.0845029 | 0.0067018 | 0.00977235 |
| 162 | 0.117174 | 0.0154051 | 0.0168631 |
| 198 | 0.104248 | 0.00897174 | 0.01220215 |
| 234 | 0.0885196 | 0.0083905 | 0.01290623 |
| 270 | 0.068187 | 0.00599477 | 0.00839038 |
| 306 | 0.053794 | 0.00992058 | 0.0074084 |
| 342 | 0.107143 | 0.0418234 | 0.03713172 |
