Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|

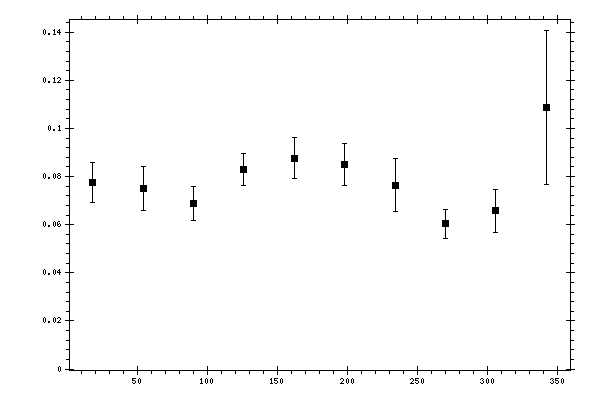

Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0775516 | 0.00833949 | 0.01385104 |
| 54 | 0.075148 | 0.00914281 | 0.0080346 |
| 90 | 0.0688027 | 0.00724533 | 0.00923243 |
| 126 | 0.0828997 | 0.00681777 | 0.00670123 |
| 162 | 0.0875685 | 0.00848496 | 0.0097293 |
| 198 | 0.0851297 | 0.00873944 | 0.0069129 |
| 234 | 0.0764195 | 0.010889 | 0.00889273 |
| 270 | 0.0604314 | 0.00599902 | 0.00581652 |
| 306 | 0.065801 | 0.00898659 | 0.01002143 |
| 342 | 0.108735 | 0.0320376 | 0.04349583 |
