Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

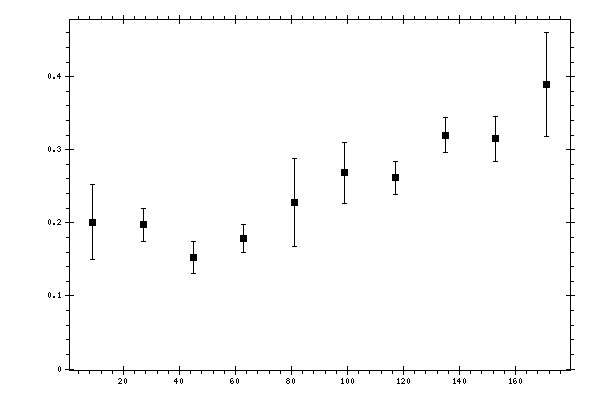

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.201089 | 0.050918 | 0.0601843 |
| 27 | 0.1974 | 0.0225901 | 0.03896736 |
| 45 | 0.152594 | 0.0223118 | 0.02934271 |
| 63 | 0.178656 | 0.0190002 | 0.02800909 |
| 81 | 0.227932 | 0.0599211 | 0.0464379 |
| 99 | 0.268254 | 0.0420375 | 0.07515958 |
| 117 | 0.261725 | 0.0227384 | 0.02682451 |
| 135 | 0.319993 | 0.0241332 | 0.03096051 |
| 153 | 0.314983 | 0.0310463 | 0.03037669 |
| 171 | 0.389424 | 0.0715481 | 0.03792687 |
