Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

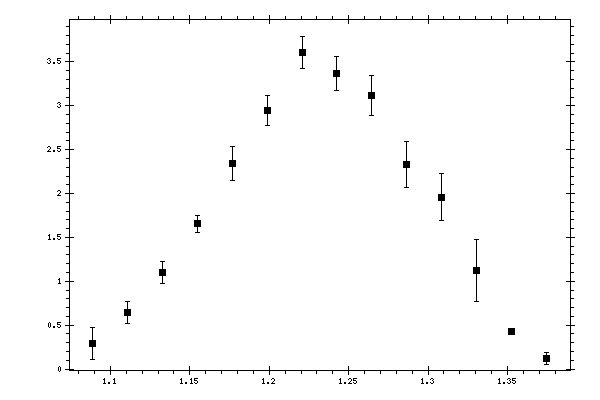

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.08883 | 0.291422 | 0.18682 | 0.03862565 |
| 1.1108 | 0.640929 | 0.125974 | 0.0749853 |
| 1.13277 | 1.1015 | 0.124043 | 0.10739718 |
| 1.15474 | 1.65375 | 0.101235 | 0.14421099 |
| 1.17671 | 2.34452 | 0.190537 | 0.25245992 |
| 1.19868 | 2.95002 | 0.169861 | 0.29829502 |
| 1.22065 | 3.60774 | 0.183664 | 0.34860082 |
| 1.24262 | 3.36957 | 0.190045 | 0.33268901 |
| 1.26459 | 3.11501 | 0.22553 | 0.3055574 |
| 1.28656 | 2.3306 | 0.260736 | 0.25997517 |
| 1.30853 | 1.95788 | 0.268824 | 0.44957365 |
| 1.3305 | 1.12108 | 0.355256 | 0.2823003 |
| 1.35247 | 0.427988 | 0.0360908 | 0.08357406 |
| 1.37444 | 0.11927 | 0.068367 | 0.06524681 |
