Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcbn/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|

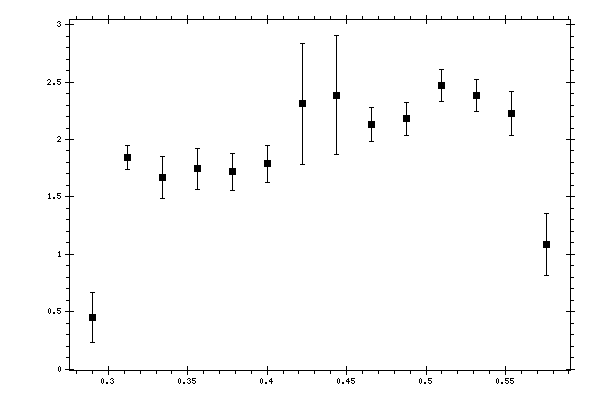

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcbn/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 0.290125 | 0.447768 | 0.219266 | 0.06627621 |
| 0.312096 | 1.84401 | 0.108048 | 0.1924546 |
| 0.334066 | 1.67173 | 0.184262 | 0.17219958 |
| 0.356037 | 1.74456 | 0.180375 | 0.1767651 |
| 0.378008 | 1.71806 | 0.163563 | 0.17683023 |
| 0.399978 | 1.78745 | 0.160357 | 0.18116623 |
| 0.421949 | 2.31113 | 0.529373 | 0.40747196 |
| 0.443919 | 2.3865 | 0.520947 | 0.4199098 |
| 0.46589 | 2.13092 | 0.146313 | 0.21150674 |
| 0.48786 | 2.17921 | 0.144682 | 0.21559098 |
| 0.509831 | 2.4712 | 0.13801 | 0.21622897 |
| 0.531802 | 2.38274 | 0.140549 | 0.20885494 |
| 0.553772 | 2.22545 | 0.18942 | 0.30940896 |
| 0.575743 | 1.08256 | 0.271587 | 0.15076385 |
