Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|

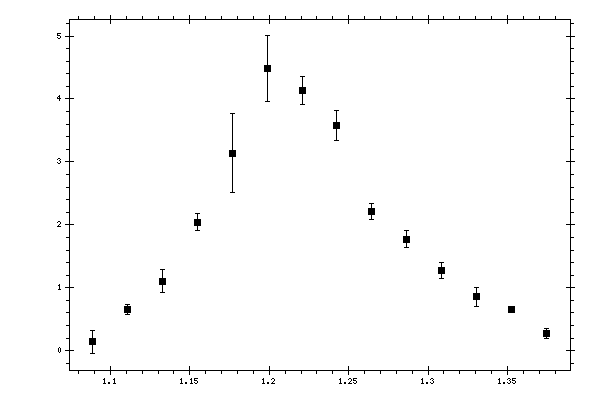

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.08883 | 0.143269 | 0.181889 | 0.05794742 |
| 1.1108 | 0.653629 | 0.0851563 | 0.0861756 |
| 1.13277 | 1.1054 | 0.184706 | 0.15223628 |
| 1.15474 | 2.04436 | 0.13582 | 0.21535509 |
| 1.17671 | 3.1346 | 0.627149 | 0.48478988 |
| 1.19868 | 4.47776 | 0.524724 | 0.67839581 |
| 1.22065 | 4.13246 | 0.219491 | 0.34860182 |
| 1.24262 | 3.58067 | 0.235798 | 0.30571865 |
| 1.26459 | 2.21053 | 0.123096 | 0.18532716 |
| 1.28656 | 1.77028 | 0.137554 | 0.15304607 |
| 1.30853 | 1.26991 | 0.126033 | 0.17658407 |
| 1.3305 | 0.855008 | 0.153598 | 0.12098326 |
| 1.35247 | 0.650176 | 0.0492727 | 0.06346295 |
| 1.37444 | 0.27007 | 0.0764511 | 0.02886239 |
