Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

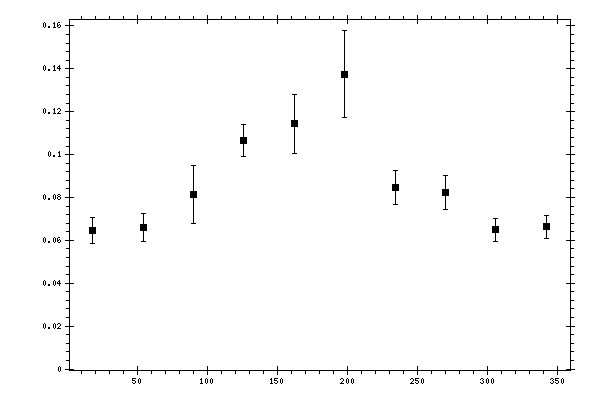

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0647222 | 0.00600352 | 0.00762372 |
| 54 | 0.0659287 | 0.00663292 | 0.00817844 |
| 90 | 0.0814102 | 0.013381 | 0.00847678 |
| 126 | 0.106524 | 0.00763219 | 0.01086444 |
| 162 | 0.1143 | 0.0136554 | 0.01224184 |
| 198 | 0.137563 | 0.0202451 | 0.02104608 |
| 234 | 0.0845897 | 0.00798128 | 0.00947688 |
| 270 | 0.0824562 | 0.00795492 | 0.00948253 |
| 306 | 0.0649283 | 0.005249 | 0.00756445 |
| 342 | 0.0662762 | 0.0051827 | 0.00722822 |
