Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

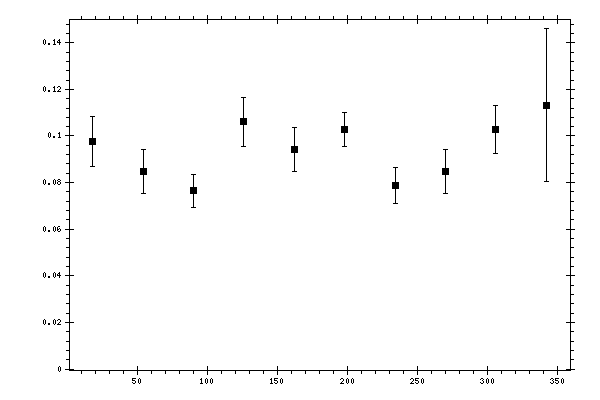

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0976716 | 0.0107866 | 0.01520097 |
| 54 | 0.0846245 | 0.00942248 | 0.00815085 |
| 90 | 0.0764343 | 0.00714757 | 0.00664882 |
| 126 | 0.106032 | 0.010579 | 0.01197257 |
| 162 | 0.0943317 | 0.00949304 | 0.00757975 |
| 198 | 0.102875 | 0.00739292 | 0.00865373 |
| 234 | 0.0787383 | 0.00770984 | 0.00664536 |
| 270 | 0.0847192 | 0.00945948 | 0.00867314 |
| 306 | 0.102678 | 0.0102181 | 0.01133285 |
| 342 | 0.113233 | 0.0327087 | 0.02815162 |
