Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|

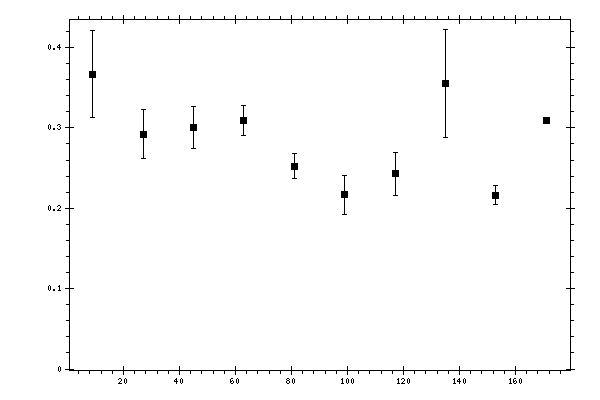

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.366801 | 0.0539926 | 0.0345556 |
| 27 | 0.292003 | 0.0304602 | 0.02344285 |
| 45 | 0.30053 | 0.0257751 | 0.02615734 |
| 63 | 0.309373 | 0.0185751 | 0.02489142 |
| 81 | 0.252444 | 0.0153515 | 0.02140742 |
| 99 | 0.216925 | 0.024137 | 0.01720114 |
| 117 | 0.24277 | 0.0268515 | 0.02300621 |
| 135 | 0.355059 | 0.0676529 | 0.07847484 |
| 153 | 0.216269 | 0.0119664 | 0.10478973 |
| 171 | 0.308954 | 0.00026977 | 0.1658432 |
