Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

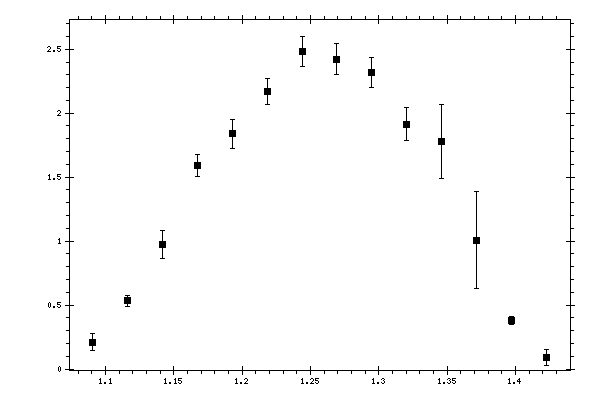

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09061 | 0.210773 | 0.0641785 | 0.02431573 |
| 1.11615 | 0.53186 | 0.0404016 | 0.05681249 |
| 1.1417 | 0.975436 | 0.109433 | 0.09025568 |
| 1.16724 | 1.58989 | 0.0857167 | 0.1367553 |
| 1.19278 | 1.83749 | 0.110042 | 0.16771223 |
| 1.21832 | 2.16738 | 0.101322 | 0.19043778 |
| 1.24386 | 2.48113 | 0.118691 | 0.24543952 |
| 1.26941 | 2.42061 | 0.120165 | 0.24156458 |
| 1.29495 | 2.31684 | 0.117854 | 0.24215408 |
| 1.32049 | 1.91449 | 0.129648 | 0.2166484 |
| 1.34603 | 1.7787 | 0.286909 | 0.43097221 |
| 1.37157 | 1.007 | 0.381313 | 0.26464165 |
| 1.39712 | 0.377464 | 0.0299862 | 0.09337833 |
| 1.42266 | 0.0906114 | 0.0612024 | 0.056459 |
