Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcbn/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|

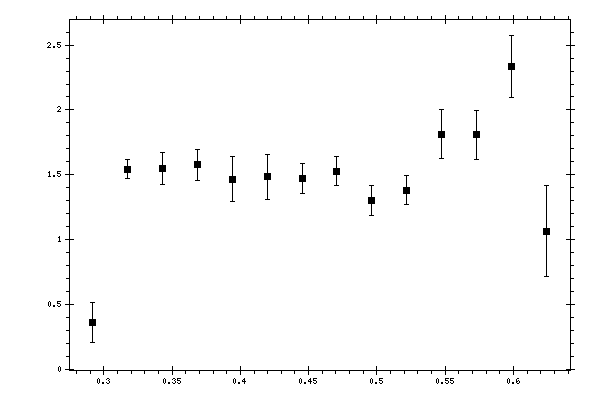

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcbn/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 0.291911 | 0.360046 | 0.153498 | 0.04759337 |
| 0.317453 | 1.54125 | 0.0741902 | 0.1368959 |
| 0.342995 | 1.55085 | 0.12274 | 0.17015433 |
| 0.368537 | 1.57529 | 0.121784 | 0.17228812 |
| 0.394079 | 1.46579 | 0.172917 | 0.15103136 |
| 0.419621 | 1.48315 | 0.171903 | 0.15230538 |
| 0.445163 | 1.47032 | 0.113578 | 0.14840447 |
| 0.470705 | 1.52838 | 0.1114 | 0.15264168 |
| 0.496247 | 1.29978 | 0.115121 | 0.1352781 |
| 0.521789 | 1.37955 | 0.111743 | 0.14199452 |
| 0.547331 | 1.81297 | 0.191223 | 0.14489511 |
| 0.572873 | 1.8067 | 0.191555 | 0.14442073 |
| 0.598415 | 2.33734 | 0.238513 | 0.4437418 |
| 0.623957 | 1.06516 | 0.353317 | 0.20236621 |
