Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

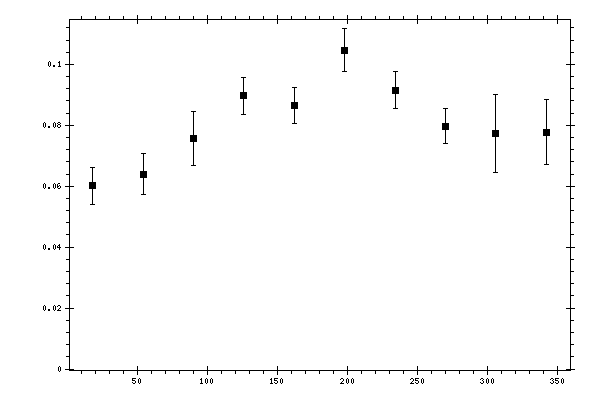

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0600819 | 0.00618795 | 0.01019485 |
| 54 | 0.0639597 | 0.00664091 | 0.00713246 |
| 90 | 0.0757056 | 0.00890517 | 0.00711496 |
| 126 | 0.0896293 | 0.00593232 | 0.0074226 |
| 162 | 0.0865013 | 0.00588393 | 0.0077142 |
| 198 | 0.104622 | 0.00705863 | 0.00868127 |
| 234 | 0.0915116 | 0.00601751 | 0.00713325 |
| 270 | 0.07967 | 0.00578028 | 0.00614577 |
| 306 | 0.0772695 | 0.0127382 | 0.00816518 |
| 342 | 0.0777905 | 0.0105512 | 0.01110988 |
