Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

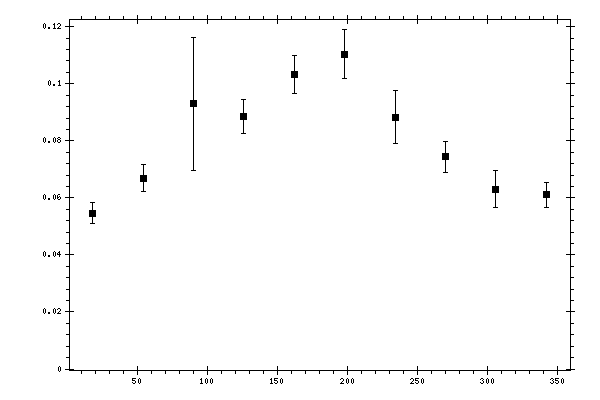

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0546937 | 0.00379841 | 0.0064828 |
| 54 | 0.0668759 | 0.00470818 | 0.00681745 |
| 90 | 0.0929434 | 0.0234424 | 0.02458771 |
| 126 | 0.0885425 | 0.00599016 | 0.00964744 |
| 162 | 0.103327 | 0.00668613 | 0.01159698 |
| 198 | 0.110376 | 0.00859661 | 0.010948 |
| 234 | 0.0883 | 0.00928839 | 0.00960863 |
| 270 | 0.0743647 | 0.00535334 | 0.008056 |
| 306 | 0.0629676 | 0.0064647 | 0.00733719 |
| 342 | 0.0610593 | 0.00450843 | 0.00629066 |
