Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

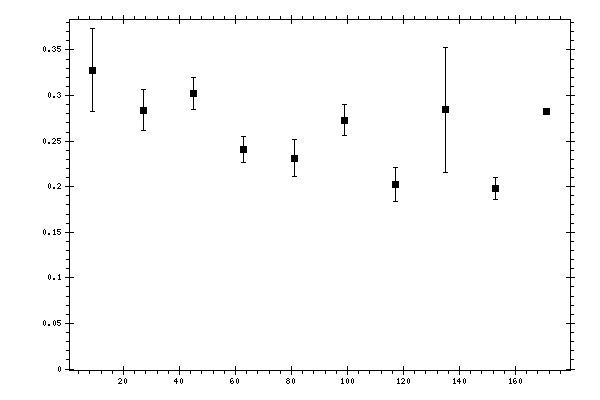

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.327889 | 0.0455217 | 0.03034811 |
| 27 | 0.283829 | 0.0223938 | 0.02615696 |
| 45 | 0.302016 | 0.0178236 | 0.02617313 |
| 63 | 0.24116 | 0.0144255 | 0.01968489 |
| 81 | 0.231256 | 0.0203483 | 0.02132867 |
| 99 | 0.272998 | 0.0169792 | 0.02094428 |
| 117 | 0.202232 | 0.0185759 | 0.01935991 |
| 135 | 0.284356 | 0.068342 | 0.08487683 |
| 153 | 0.198013 | 0.0120035 | 0.09142922 |
| 171 | 0.282565 | 0.00025551 | 0.15403638 |
