Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|

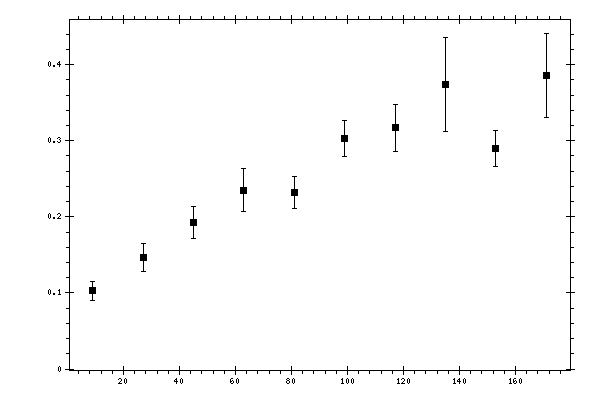

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.102613 | 0.0124744 | 0.03673082 |
| 27 | 0.146684 | 0.0185282 | 0.0290644 |
| 45 | 0.192725 | 0.02078 | 0.0302498 |
| 63 | 0.235235 | 0.0282217 | 0.02418857 |
| 81 | 0.231899 | 0.0212865 | 0.020156 |
| 99 | 0.30264 | 0.0234248 | 0.02361857 |
| 117 | 0.316912 | 0.0306899 | 0.02656305 |
| 135 | 0.37365 | 0.0617138 | 0.06600318 |
| 153 | 0.290185 | 0.0234437 | 0.02531301 |
| 171 | 0.385922 | 0.0552192 | 0.04701705 |
