Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcbn/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|

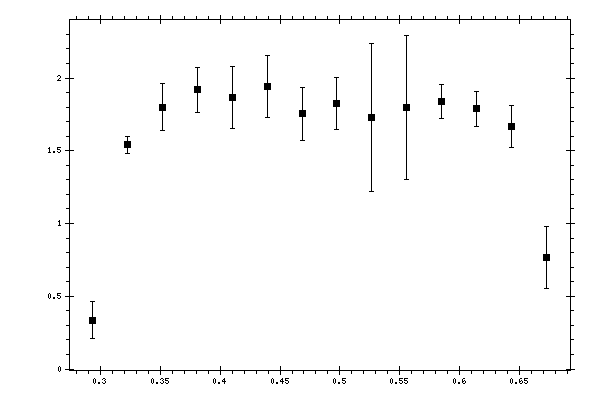

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcbn/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 0.293697 | 0.336121 | 0.124923 | 0.05080542 |
| 0.32281 | 1.54172 | 0.0583295 | 0.16572529 |
| 0.351924 | 1.80015 | 0.159284 | 0.15988217 |
| 0.381037 | 1.91921 | 0.154264 | 0.16795538 |
| 0.41015 | 1.86559 | 0.215482 | 0.17287866 |
| 0.439264 | 1.9412 | 0.211244 | 0.17839895 |
| 0.468377 | 1.75503 | 0.182291 | 0.18454954 |
| 0.497491 | 1.82666 | 0.178681 | 0.19061256 |
| 0.526604 | 1.72757 | 0.506977 | 0.14313213 |
| 0.555718 | 1.79774 | 0.496985 | 0.14785357 |
| 0.584831 | 1.83894 | 0.11759 | 0.16391137 |
| 0.613944 | 1.78743 | 0.119273 | 0.15953975 |
| 0.643058 | 1.66862 | 0.144106 | 0.15958313 |
| 0.672171 | 0.764229 | 0.212936 | 0.07378052 |
