Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

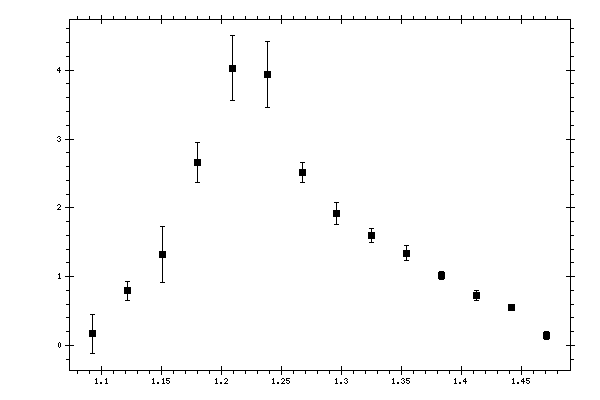

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.0924 | 0.170026 | 0.284364 | 0.06332053 |
| 1.12151 | 0.79025 | 0.131902 | 0.1275939 |
| 1.15063 | 1.31773 | 0.411218 | 0.18332618 |
| 1.17974 | 2.65279 | 0.289824 | 0.30501168 |
| 1.20885 | 4.0305 | 0.469574 | 0.32992662 |
| 1.23797 | 3.93825 | 0.475042 | 0.32327981 |
| 1.26708 | 2.50912 | 0.144321 | 0.23809428 |
| 1.29619 | 1.91537 | 0.165182 | 0.18447085 |
| 1.32531 | 1.60202 | 0.101039 | 0.13965509 |
| 1.35442 | 1.33667 | 0.110614 | 0.11727393 |
| 1.38353 | 1.01502 | 0.0644144 | 0.08694248 |
| 1.41265 | 0.726267 | 0.0761503 | 0.06332876 |
| 1.44176 | 0.545735 | 0.0292086 | 0.04722704 |
| 1.47087 | 0.143379 | 0.0569849 | 0.01476379 |
